Motor Position Sensor Selection: Resolver vs Optical vs Magnetic Encoder

Oct 02, 2026

MOTOR FEEDBACK ENGINEERING

Motor Position Sensor Selection: Resolver vs Optical vs Magnetic Encoder

A practical guide to matching rotor-position feedback with speed, accuracy, temperature, EMI, packaging and functional requirements.

ResolverOptical EncoderMagnetic EncoderSensorless Control

Guide TypeMotor Control & Integration

Engineering FocusRotor Position Feedback

ForR&D, Controls and Manufacturing Teams

ENGINEERING CONTEXT

The correct sensor is the one that closes the complete control and packaging loop

Rotor-position feedback affects commutation angle, torque response, low-speed control, starting behavior, efficiency and fault detection. A device with excellent catalog accuracy can still underperform when shaft runout, target eccentricity, temperature drift, cable noise and interface latency are added.

Selection should begin with the motor and drive operating envelope rather than the sensor technology name. Speed range, required torque bandwidth, pole pairs, environmental exposure, available axial space, safety goals and production calibration all belong in the same decision.

Control dutyAngle where torque is produced

Electrical angle error directly affects field-oriented current control and torque-per-ampere performance.

Mechanical dutySpeed and absolute position

Motion systems may require accurate shaft angle, direction, multiturn information or index referencing.

EnvironmentTemperature, vibration and contamination

Oil mist, dust, condensation, shock and electromagnetic fields narrow the practical technology choice.

Production dutyAlignment and calibration

Mounting stack-up and electrical-zero calibration determine end-of-line consistency.

FEEDBACK HARDWARE

Sensor architecture changes the integration problem

Disassembled optical rotary encoder — **Optical encoder**A coded or incremental disk, light path and detector convert shaft motion into precise digital position information.

Opened absolute Gray code rotary encoder — **Absolute code disk**Multiple tracks can identify shaft position immediately after power-up without an index search.

Brushless motor with rotor and Hall sensors visible — **Hall-based commutation**Integrated magnetic sensing supports compact, economical rotor-state detection in many BLDC applications.

Open servo motor showing motor gears and position sensor — **Feedback integration**The sensor, rotor, bearings, housing, cable and controller form one position-measurement chain.

TECHNOLOGY COMPARISON

Start with application-level tradeoffs

Selection Factor	Resolver	Optical Encoder	Magnetic Encoder	Three Hall Switches
Position output	Analog sine/cosine transformed by resolver-to-digital electronics	Incremental or absolute digital position	Incremental or absolute digital/analog position	Discrete commutation sectors
Low-speed control	Strong when excitation and decoding are well designed	Strong with adequate resolution and interpolation	Strong with suitable pole target, calibration and bandwidth	Limited angle resolution and torque smoothness
Temperature capability	Often selected for severe temperature environments	Limited by optics, electronics and materials	Limited by IC, magnet/target and package	Dependent on Hall IC and target magnet
Contamination tolerance	Good sealed electromagnetic construction	Optical path can be sensitive if sealing is inadequate	No optical path; target gap and debris still matter	Generally robust with adequate sealing
EMI behavior	Differential analog signals require excitation and careful harness design	Digital outputs still require grounding and cable control	Must reject motor stray field and current-related disturbance	Switch thresholds can be disturbed by field geometry
Packaging	Axial length, rotor/stator alignment and converter electronics	Disk concentricity, air gap, cleanliness and bearing reference	Compact target and IC, but strict magnetic geometry	Compact PCB and target magnet arrangement
Typical attraction	Harsh-duty robustness and continuous absolute angle	High resolution and motion-control accuracy	Compact absolute feedback and flexible integration	Low-cost six-step commutation

The actual result depends on device grade, signal chain, mounting, calibration, control software and operating environment. Compare released system specifications, not generic technology labels.

ELECTRICAL ANGLE

Mechanical error is multiplied by the pole-pair count

Motor control uses electrical rotor angle. A mechanical position error becomes a larger electrical angle error as the number of pole pairs increases. The controller must also account for sensor offset, phase sequence, signal delay and inverter timing.

Mechanical zero: physical sensor reference relative to rotor geometry.
Electrical zero: rotor flux axis relative to phase current convention.
Direction: sensor count direction and motor phase sequence must agree.
Latency: sampling, filtering, communication and computation create dynamic angle lag.
Compensation: calibration should be traceable to the assembled motor and drive.

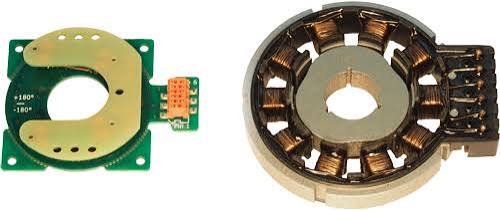

RESOLVER

Robust analog feedback depends on excitation and decoding quality

Excitation

Stable carrier amplitude and frequency are required for repeatable sine and cosine channels.

Transformation ratio

Resolver construction and load conditions determine output amplitude and converter range.

Amplitude balance

Sine/cosine gain mismatch creates periodic angle error unless controlled or compensated.

Phase shift

Harness, winding and electronics phase behavior can affect demodulation and tracking.

Installation

Stator-to-rotor eccentricity, axial position and runout influence harmonic error.

RDC tracking

Converter bandwidth and acceleration capability must follow the motor's maximum dynamic rate.

OPTICAL ENCODER

Resolution is useful only when mechanics and signal quality preserve it

Optical encoders can provide fine incremental counts or direct absolute codes. Their high nominal resolution supports precision servo loops, but disk eccentricity, shaft runout, interpolation error, light-level variation and mounting stress can limit achieved accuracy.

Encoder Feature	Engineering Value	Integration Risk	Control Approach
Incremental A/B channels	Position change, direction and speed	Position is unknown after power interruption	Index search or external reference procedure
Index pulse	Once-per-revolution mechanical reference	Search motion may be unacceptable in some machines	Controlled homing and offset validation
Absolute code	Immediate position after power-up	Interface latency, frame errors and protocol integration	Communication monitoring and plausibility checks
Interpolation	Higher effective count between physical marks	Subdivision error can create cyclic velocity ripple	Calibrated interpolation and speed-domain testing
High line count	Fine commanded position and low-speed velocity estimate	Maximum output frequency may exceed receiver capability	Check edge rate, cable, receiver and maximum speed

MAGNETIC ENCODER

Compact absolute sensing requires control of the magnetic field geometry

Magnetic encoders measure a rotating target field using Hall or magnetoresistive elements. They avoid an optical path and can be compact, but target magnet quality, air gap, tilt, lateral offset, external field and nearby ferromagnetic components all influence accuracy.

Specify target magnet material, magnetization pattern and field limits.
Control axial gap, radial offset, tilt and sensor-board location.
Model rotor leakage field, phase current and nearby steel influence.
Evaluate temperature drift of both target magnet and sensor electronics.
Use harmonic calibration only inside a controlled mechanical stack-up.

ERROR BUDGET

Separate static accuracy from dynamic control error

Error Contributor	Static Effect	Dynamic Effect	How to Measure	Possible Mitigation
Sensor nonlinearity	Periodic angle deviation	Torque and velocity ripple	Reference encoder map over one revolution	Device selection or harmonic compensation
Eccentricity / runout	Once-per-revolution and harmonic error	Speed-dependent modulation	Mechanical runout plus angle-error mapping	Datums, bearing control and calibrated assembly
Temperature drift	Offset, gain or field change	Warm-up torque variation	Thermal chamber mapping under operation	Temperature compensation and robust stack-up
Signal latency	Little effect at standstill	Angle lag proportional to speed	Timestamp or phase comparison under rotation	Predictive compensation and lower-latency interface
EMI / common mode	Noise or occasional code error	Transient angle spikes and control disturbance	Inverter switching tests and immunity injection	Shielding, grounding, differential signaling and filtering
Quantization	Finite position step	Low-speed velocity granularity	Count density and control-loop simulation	Higher resolution, observer or filtered estimation

INTERFACE & EMC

The cable and receiver are part of the sensor

Analog

Sine / cosine channels

Control amplitude balance, shielding, reference, input range, bandwidth and common-mode rejection.

Incremental

A/B/Z signals

Check differential drivers, edge rate, termination, count frequency and missing-edge diagnostics.

Serial

Absolute digital interface

Define clocking, latency, CRC, timeout, startup state, update rate and error reaction.

Resolver

Excitation and return harness

Separate high-current switching paths and validate demodulation under worst-case inverter operation.

Grounding

Shield and reference strategy

Prevent bearing, housing and cable currents from becoming position-measurement error.

Diagnostics

Plausibility and redundancy

Monitor amplitude, vector length, channel relation, update timing, speed and commanded state.

INSTALLATION TOLERANCES

Convert mechanical stack-up into an angle-error limit

Mechanical Variable	Resolver Sensitivity	Optical Sensitivity	Magnetic Sensitivity	Production Control
Radial eccentricity	Amplitude and harmonic imbalance	Disk/readhead alignment error	Field amplitude and angular distortion	Common datum, runout limit and gauge study
Axial gap	Coupling and amplitude change	Focus/light-path margin by design	Target field magnitude and linearity	Controlled shoulders, shims or end-play specification
Tilt	Uneven electromagnetic coupling	Disk-to-readhead alignment	Field vector distortion	Face runout and perpendicularity control
Shaft end play	Axial position variation	Gap and index stability	Dynamic target-gap variation	Bearing preload and assembly measurement
Angular mounting offset	Electrical-zero shift	Index or absolute-zero shift	Target-to-sensor zero shift	End-of-line electrical alignment calibration

VALIDATION & PRODUCTION

Test the complete feedback chain under real inverter conditions

Bench angle mapping

Compare sensor angle with a higher-accuracy reference across full rotation, direction and speed.

Thermal mapping

Measure offset, cyclic error, amplitude and communication behavior from minimum to maximum temperature.

Speed and acceleration

Verify tracking, count rate, signal amplitude and latency at maximum dynamic conditions.

EMC operation

Run the inverter across switching states, current, regeneration and cable configurations while monitoring faults.

Mechanical durability

Combine vibration, shock, end play and thermal cycles with post-test angle correlation.

End-of-line calibration

Store offset and diagnostic data with motor serial number, sensor lot, fixture and firmware revision.

SELECTION WORKFLOW

Choose feedback from the control requirement outward

Define motion

Speed, torque bandwidth, positioning and startup.

Set environment

Temperature, fluids, vibration, EMI and life.

Build error budget

Sensor, mechanics, latency, calibration and drift.

Prototype system

Motor, drive, harness, firmware and fixture.

Validate & release

Limits, diagnostics, EOL data and control plan.

RFQ CHECKLIST

Information needed for a motor feedback review

Motor dataMotor type, pole pairs, rated/max speed, torque, inertia and rotor construction

Control targetsCurrent-loop bandwidth, speed range, positioning accuracy, startup and field weakening

EnvironmentTemperature, vibration, shock, contamination, fluids, altitude and service life

PackagingAvailable diameter/length, shaft and bearing datums, target gap, runout and connector space

ElectronicsDC bus, inverter, switching frequency, interface, cable length, safety and diagnostics

Program needsPrototype quantity, annual volume, calibration strategy, traceability and validation schedule

FAQ

Motor position feedback selection questions

Is a resolver always more robust than an encoder?

A resolver can be attractive for temperature, contamination and vibration, but robustness depends on its converter, harness, mounting and excitation design. A properly sealed encoder may be suitable for many industrial environments.

Does higher encoder resolution always improve motor performance?

No. Resolution does not remove nonlinearity, runout, interpolation error, latency or control noise. The useful requirement should come from torque, speed and positioning performance.

Can a magnetic encoder work close to permanent magnets?

Yes, when the target field, motor leakage field, current-related fields, nearby steel and tolerance stack are evaluated together. Magnetic simulation and system-level testing are often necessary.

Why must the sensor offset be calibrated on the assembled motor?

Rotor magnetization, sensor mounting, bearing datums and phase connection all contribute to electrical-zero error. Assembly-level calibration captures the complete stack.

When is sensorless control a practical alternative?

Sensorless methods can reduce hardware where speed and load conditions provide sufficient observability. Zero-speed torque, startup under load, rapid transients and safety requirements may still favor physical feedback.
