STATOR TESTING AND QUALITY CONTROL
How to use four-wire measurement, compare line-to-line readings and correct copper resistance for temperature before judging a stator.
Engineering Context
DC winding resistance is a basic check for an electric motor stator. It can reveal a wrong winding, damaged joint, connection error or phase mismatch. The number itself is easy to misread: small motor windings may have resistance low enough that test leads and contact pressure contribute a significant fraction of a two-wire reading.
Resistance also rises as copper temperature increases. A stator measured just after operation cannot be compared directly with one measured at room temperature unless both readings are referenced to the same temperature. A useful test record therefore contains the connection points, method, winding temperature, instrument settings and acceptance basis.
Record whether the test is phase-to-neutral or line-to-line.
Use separate force and sense leads for low-resistance work.
Measure and correct to a stated reference temperature.
Compare with a design limit and a qualified baseline.
Image Gallery
Two-Wire vs Four-Wire
| Method | Current Path | Voltage Sensing | Practical Use | Main Risk |
|---|---|---|---|---|
| Two-wire | Same two leads carry measurement current | Voltage includes lead and contact drops | Rough screening when winding resistance is high relative to lead resistance | False high reading or false phase imbalance from fixture contact |
| Four-wire / Kelvin | Outer force leads inject controlled current | Separate sense leads read voltage near the intended terminals | Low-ohm production checks, design comparison and detailed diagnosis | Bad sense placement or unstable contacts still create error |
| Current reversal | Instrument reverses the DC test current | Positive and negative measurements are combined | Useful when thermal EMF offsets matter | Insufficient settling time in an inductive winding |
A four-wire instrument reduces lead-resistance error; it does not remove the need for clean, repeatable terminals and a stable winding temperature.

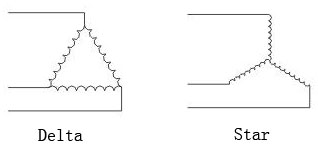

Connection Topology
With an accessible neutral, measure each phase winding directly when the motor design permits it. If only three line terminals are available, the meter sees a network determined by the winding connection. For balanced, isolated windings and no external parallel path:
Disconnect the controller and any external electrical paths before measurement. Confirm the circuit is de-energized and allow stored energy to discharge using the approved test procedure.
Temperature Correction
Copper resistance increases with temperature. If the test value is measured at a temperature different from the specification reference, convert it before applying the acceptance limits. For a moderate temperature range, a linear copper approximation can be used when the design authority approves the coefficient.
Practical Test Sequence
De-energize, disconnect the controller and verify absence of voltage under the site procedure.
Record ambient and winding temperature; avoid mixing hot and cold samples.
Use consistent terminal surfaces and a fixture that controls force and probe position.
Apply suitable test current, allow inductive settling and record U-V, V-W and W-U.
Apply the approved copper correction before comparing values across samples.
Re-seat probes, verify the setup and inspect the connection before rejecting a stator.
Troubleshooting
| Observed Result | Possible Causes | First Verification | Likely Follow-Up |
|---|---|---|---|
| All readings high | Hot winding, wrong design variant, lead/contact contribution, calibration issue | Check temperature, four-wire setup and part number | Review winding turns, wire size and reference specification |
| One line pair high | Terminal contact, weak joint, conductor damage or phase variation | Re-seat Kelvin probes and repeat after temperature stabilization | Inspect terminal, joint and phase circuit |
| One line pair low | Wrong connection, parallel path or internal winding short | Disconnect external circuits and confirm topology | Compare inductance, surge response and design data where appropriate |
| Reading drifts | Winding heating from test current, changing contact or insufficient settling | Reduce current if permitted and observe time trace | Check fixture and instrument measurement program |
| High unit-to-unit spread | Mixed temperature, process variation or fixture sensitivity | Correct all units to the same reference temperature | Study winding process, termination and gauge repeatability |
DC resistance does not prove insulation integrity or exclude every turn-to-turn fault. Use the appropriate insulation, surge and functional tests for the full release plan.
Motor Component Production
Resistance results connect winding design to manufacturing quality. Changes in wire diameter, turns, conductor length, weld or crimp quality, and terminal routing can shift the result. For a custom stator or complete motor program, the production drawing should state the connection topology, test points, reference temperature, accepted range, equipment class and recording format.
Ningbo Vanguard Technologies supports winding, stator and motor assembly development from prototype measurements to production inspection. Share nominal voltage, winding diagram, wire specification, target torque-speed curve, thermal duty, sample data and annual demand when requesting an engineering review.
FAQ
Answers for test engineers and motor buyers.
With a low-resistance winding, ordinary test leads and terminal contacts can be a meaningful part of a two-wire result. Separate force and sense leads allow the voltage to be measured close to the intended motor terminals.
No. For balanced isolated star windings, line-to-line resistance is approximately twice one phase resistance. For balanced delta windings, it is approximately two-thirds of one branch resistance. Confirm the actual connection before converting values.
Copper resistance rises with temperature. Measure winding temperature and convert readings to the same reference temperature before comparing the hot unit with a cold specification.
No. DC resistance checks conductor and connection continuity, but it does not replace insulation-resistance, surge, dielectric or functional testing where these tests are required.
Provide all three terminal-pair readings, measurement temperature, connection diagram, instrument and four-wire setup, fixture details, motor variant and production history.
