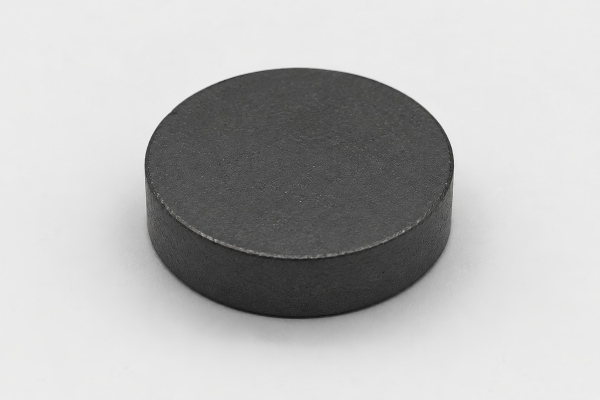

Cylinder Ferrite Magnets
Cylinder Ferrite Magnets
Cylinder Ferrite Magnets
Cylinder Ferrite Magnets
Cylinder Ferrite Magnets
Cylinder Ferrite Magnets
Cylinder Ferrite Magnets
Cylinder Ferrite Magnets
Cylinder Ferrite Magnets

Cylinder Ferrite Magnets

Contact Us Now

Ningbo Vanguard Technologies Co., Ltd

Cylinder Ferrite Magnets

Cost-effective ceramic cylinders and rods for sensors, speakers, holders, magnetic separation and industrial assemblies.

Vanguard supports grade selection, cylindrical geometry, magnetization planning, sample development and production supply. Diameter, axial length, shape factor, pole direction and magnetic circuit are reviewed together.

Request a Drawing Review
Custom cylinder ferrite magnets in round rod geometry
Ferrite cylinders with drawing-defined diameter, axial length, edges and pole direction.

Selection Snapshot

Cylinder Ferrite Magnet Selection Snapshot

Y / C Grades

Grade Selection

Balance remanence, intrinsic coercivity, temperature, shape factor, magnetic circuit and cost.

D / L

Cylinder Geometry

Specify diameter, axial length, chamfers, flatness, roundness and any hole, slot or step.

Axis + Polarity

Magnetization Direction

Define axial, diametrical, radial or application-specific magnetization with a pole sketch.

Sample to Production

Supply Scope

Request bare cylinders, marked polarity sets, adhesive-backed parts or assembly support after review.

Geometry & Magnetization

Define the Magnetic Axis and Test Surface

Engineering Selection

Design Points for Cylinder Ferrite Magnets

01. Shape Factor & Operating Point

Length in the magnetization direction relative to diameter affects the load line and demagnetization margin. Review the actual magnetic circuit and temperature-dependent curves.

02. Working Gap & Steel Circuit

Flux and holding force depend on pole area, steel return path, air gap, mating surface and measurement fixture. Select the cylinder as part of the complete circuit.

03. Brittle Edges & Clamping

Ferrite is hard and brittle. Add suitable chamfers, avoid point loads and do not assume a metal-like press fit or clamping method is acceptable.

04. Axial or Diametrical Magnetization

Confirm that material orientation and magnetizing tooling support the required direction. Diametrical or special patterns need explicit feasibility review.

Magnetic Performance

Grade & Magnetic Properties

Reference values at 20 °C from the existing Vanguard ferrite grade table. The approved material specification and agreed inspection criteria govern each order.

Grade Standard Br mT Br kG Hcb kA/m Hcb kOe Hcj kA/m Hcj kOe BHmax kJ/m³ BHmax MGOe
Y8T Chinese 200-235 2.0-2.35 125-160 1.57-2.01 210-280 2.64-3.52 6.5-9.5 0.8-1.2
Y10T Chinese 200-235 2.0-2.35 128-160 1.61-2.01 210-280 2.64-3.52 6.4-9.6 0.8-1.2
Y20 Chinese 320-380 3.2-3.8 135-190 1.70-2.39 140-195 1.76-2.45 18.0-22.0 2.3-2.8
Y22H Chinese 310-360 3.1-3.6 220-250 2.76-3.14 280-320 3.52-4.02 20.0-24.0 2.5-3.0
Y23 Chinese 320-370 3.2-3.7 170-190 2.14-2.39 190-230 2.39-2.89 20.0-25.5 2.5-3.2
Y25 Chinese 360-400 3.6-4.0 135-170 1.70-2.14 140-200 1.76-2.51 22.5-28.0 2.8-3.5
Y26H Chinese 360-390 3.6-3.9 220-250 2.76-3.14 225-255 2.83-3.20 23.0-28.0 2.9-3.5
Y26H-1 Chinese 360-390 3.6-3.9 200-250 2.51-3.14 225-255 2.83-3.20 23.0-28.0 2.9-3.5
Y26H-2 Chinese 360-380 3.6-3.8 263-288 3.30-3.62 318-350 4.00-4.40 24.0-28.0 3.0-3.5
Y27H Chinese 370-400 3.7-4.0 205-250 2.58-3.14 210-255 2.64-3.20 25.0-29.0 3.1-3.6
Y28 Chinese 370-400 3.7-4.0 175-210 2.20-2.64 180-220 2.26-2.76 26.0-30.0 3.3-3.8
Y28H-1 Chinese 380-400 3.8-4.0 240-260 3.02-3.27 250-280 3.14-3.52 27.0-30.0 3.4-3.8
Y28H-2 Chinese 360-380 3.3-3.8 271-295 3.41-3.71 382-405 4.80-5.09 26.0-30.0 3.3-3.8
Y30 Chinese 370-400 3.7-4.0 175-210 2.20-2.64 180-220 2.26-2.76 26.0-30.0 3.3-3.8
Y30BH Chinese 380-390 3.8-3.9 223-235 2.80-2.95 231-245 2.90-3.08 27.0-30.0 3.4-3.8
Y30H-1 Chinese 380-400 3.8-4.0 230-275 2.89-3.46 235-290 2.95-3.64 27.0-32.0 3.4-4.0
Y30H-2 Chinese 395-415 3.95-4.15 275-300 3.46-3.77 310-335 3.90-4.21 27.0-32.5 3.4-4.1
Y32 Chinese 400-420 4.0-4.2 160-190 2.01-2.39 165-195 2.07-2.45 30.0-33.5 3.8-4.2
Y32H-1 Chinese 400-420 4.0-4.2 190-230 2.39-2.89 230-250 2.89-3.14 31.5-35.0 4.0-4.4
Y32H-2 Chinese 400-440 4.0-4.4 224-240 2.81-3.02 230-250 2.89-3.14 31.0-34.0 3.9-4.3
Y33 Chinese 410-430 4.1-4.3 220-250 2.76-3.14 225-255 2.83-3.20 31.5-35.0 4.0-4.4
Y33H Chinese 410-430 4.1-4.3 250-270 3.14-3.39 250-275 3.14-3.46 31.5-35.0 4.0-4.4
Y34 Chinese 420-440 4.2-4.4 200-230 2.51-2.89 205-235 2.58-2.95 32.5-36.0 4.1-4.5
Y35 Chinese 430-450 4.3-4.5 215-239 2.70-3.00 217-241 2.73-3.03 33.1-38.2 4.2-4.8
Y36 Chinese 430-450 4.3-4.5 247-271 3.10-3.41 250-274 3.14-3.44 35.1-38.3 4.4-4.8
Y38 Chinese 440-460 4.4-4.6 285-305 3.58-3.83 294-310 3.69-3.90 36.6-40.6 4.6-5.1
Y40 Chinese 440-460 4.4-4.6 330-354 4.15-4.45 340-360 4.27-4.52 37.5-41.8 4.7-5.3
C1 American 230 2.3 148 1.86 258 3.5 8.36 1.05
C5 American 380 3.8 191 2.4 199 2.5 27 3.4
C7 American 340 3.4 258 3.23 318 4.0 21.9 2.75
C8 / C8A American 385 3.85 235 2.95 242 3.05 27.8 3.5
C8B American 420 4.2 232 2.913 236 2.96 32.8 4.12
C9 American 380 3.8 280 3.516 320 4.01 26.4 3.32
C10 American 400 4.0 280 3.52 284 3.57 30.4 3.82
C11 American 430 4.3 200 2.512 204 2.56 34.4 4.32
C12 American 400 4.0 290 3.65 318 4.0 32 4.0

Grade selection: Compare values only under equivalent test conditions. Final performance also depends on material orientation, segment geometry, magnetization, motor air gap and the measurement method.

Material Reference

Typical Physical Properties (All Sintered Ferrite Grades)

General reference values for sintered ferrite materials. These values describe the material family and are not part-specific acceptance limits unless separately agreed.

Parameter Unit Typical Value
Density / ρ g/cm³ 4.9-5.1
Vickers Hardness / HV - 400-700
Compression Strength N/mm² 680-720
Coefficient of Thermal Expansion / α 10-6/°C C⊥: 10; C∥: 15
Electrical Resistivity / ρ mΩ·cm 1 × 1010
Thermal Conductivity / k W/(cm·°C) 0.029
Tensile Strength / σ Pa 34 × 106
Modulus of Elasticity / λ Pa 1.8 × 1011
Flexural Strength / σ Pa 62 × 106
Compression Strength Pa 895 × 106
Poisson's Ratio / ν - 0.28

Orientation notation: C∥ and C⊥ indicate directions parallel and perpendicular to the material orientation axis. Confirm test methods when a physical property is used as a design or acceptance requirement.

Drawing Definition

Dimension Capability

The ranges below are catalogue references from the existing page. Diameter and length cannot be selected independently; tooling, pressing direction, grade, shape factor, magnetization and grinding are reviewed together.

Dimension Reference Minimum Reference Maximum Drawing Requirement
Diameter (D) 1 mm 120 mm Define roundness, pole face and inspection datum
Axial Length (L) 1 mm 150 mm Review shape factor, pressing and grinding route
Chamfer / Edge Optional Custom Define angle or size and acceptable edge chips

Final tolerances are quoted by feature after geometry, tooling, sintering variation and inspection access are reviewed. Center holes, slots, flats, steps and unusually long rods require separate confirmation.

Custom Features

Geometry, Magnetization and Finishing Options

Area Options for Review Engineering Focus
Geometry Cylinder, rod, short disc, chamfer, center hole, step, slot and flat Tooling, slenderness, strength, grinding and edge integrity
Magnetization Axial, diametrical, radial, paired polarity and fixture-specific direction Material orientation, pole faces and fixture feasibility
Finishing OD and face grinding, chamfering, cleaning, marking and adhesive backing Final fit, cleanliness, bonding and brittle-edge protection
Inspection Grade properties, surface flux, pull force, dimensions and polarity Defined probe, distance, steel target, fixture and acceptance limits

Application Fit

Typical Applications

Sensors & Switches

Define polarity, trigger distance, orientation, temperature and tolerance stack for reed, Hall or proximity sensing.

Holding & Closure Devices

Review steel target, contact area, coating, gap, pull direction and release method for the complete assembly.

Speakers & Acoustic Modules

Coordinate cylinder dimensions, steel circuit, voice-coil gap and required field with the acoustic design.

Magnetic Separation & General Assemblies

Use ferrite cylinders where corrosion resistance, stable supply and cost are important, while validating working distance and target material.

Production Support

Manufacturing & Inspection Capability

Material & Sintering Control

Align powder preparation, material orientation, pressing and sintering with the approved grade and geometry.

Diameter, Length & Edge Control

Inspect diameter, axial length, roundness, end-face condition, chamfers and agreed chip limits from defined datums.

Magnetic Verification

Confirm polarity, grade properties, surface flux or pull force under an agreed fixture and measurement setup.

Sorting, Packing & Traceability

Define polarity marking, magnetic sorting, lot identification, reports and packaging that protects brittle parts.

Project Workflow

From Drawing to Production

  1. 01. ReviewConfirm diameter, length, grade, polarity and application conditions.
  2. 02. PrepareAgree tooling, samples, magnetization and inspection plan.
  3. 03. ValidateCheck fit, magnetic output, polarity, edges and assembly performance.
  4. 04. ReleaseFreeze the approved specification, reports and packing method.

Technical Questions

Frequently Asked Questions

Are cylinder ferrite magnets always axially magnetized?

No. Axial magnetization is common, while diametrical, radial or special directions may be reviewed according to material orientation, size and fixture feasibility.

How does the length-to-diameter ratio affect performance?

It influences the magnet operating point when length is measured in the magnetization direction. The complete magnetic circuit and temperature must still be considered.

Can cylinder ferrite magnets be press-fitted?

Ferrite is brittle, so direct interference may cause cracking. Use a reviewed clearance, adhesive, housing or support method instead of assuming a metal-like press fit.

How should pull force be specified?

Define steel target, thickness, contact surface, gap, pull direction, fixture and temperature. Results from different test conditions cannot be compared directly.

Do ferrite cylinders need a protective coating?

Ferrite generally has good corrosion resistance and is commonly uncoated. Marking, coating or adhesive backing may still be used for assembly or identification.

What determines samples, MOQ and lead time?

Tooling, geometry, grade, orientation, magnetizing fixture, inspection and quantity determine the quotation. Share sample demand and annual forecast for review.

Information Needed for Fast Quotation

Send the drawing and application conditions for a cylinder ferrite magnet review.

  • Geometry: diameter, axial length, chamfers, holes, slots, flats and final tolerances.
  • Magnetic duty: preferred grade or target properties, magnetization direction and polarity.
  • Application: working gap, steel circuit, temperature, environment, pull force or flux target and assembly method.
  • Supply: bare magnets or assembled parts, sample quantity, annual volume, reports and packing.
